GCS-104

Add to Wishlist
Add to Wishlist
  • Standalone electronic lock with FRID technology
  • Supports Mobile Access
  • High-security mortise lock case with ANSI standard.
  • CE, FCC approved.
  • Solid steel handles with self-lubricating long-life bearings.
  • 3-point steel latch construction with an anti-friction mechanism.
  • Panic release function – the deadbolt and latch are automatically retracted by the inside handle for easy regress in emergency situations.
  • Long-lasting Escutcheon and durable handle levers.
  • Lock programming and audit records are not erased during battery replacement.
  • Powered by four(4) AA batteries that provide up to 12-18 months of normal life.
  • Up to 990 event audit trail.
  • Low battery indicator alerts staff.
  • High security concealed cylinder override.
  • Customize key cards for different levels of access authorization.
  • Opening error detected by LED light and beep sound.
  • All cards have an effective period. Guest cards have limited access functions and expiration dates.

Description

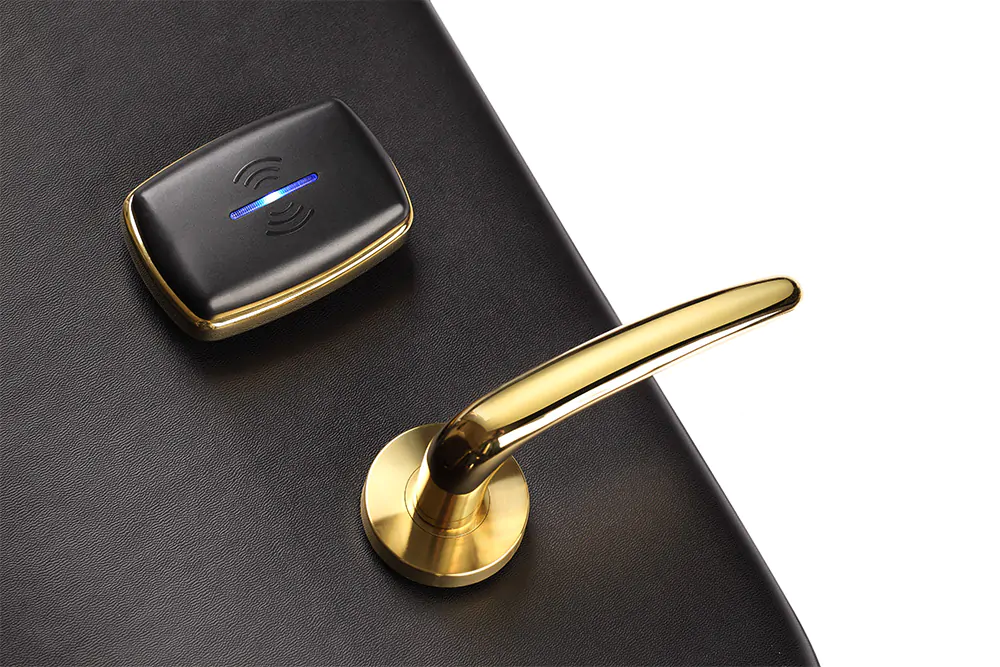

The GCS-104 series electronic locks adopt a two-piece modular design with an RFID reader for a sleek and stylish appearance combined with superior lock performance.
The lock is suitable for small to very large-scale hotels and easily replaces existing mechanical or electronic door locks throughout a facility. And this series of locks also can be access control for guest rooms, common areas as well as back-of-house.

Material Escutcheon and Handles (Stainless steel quality SUS304)
RFID and Battery Cover Polycarbonate UL94V0 (Makrolon 6555)

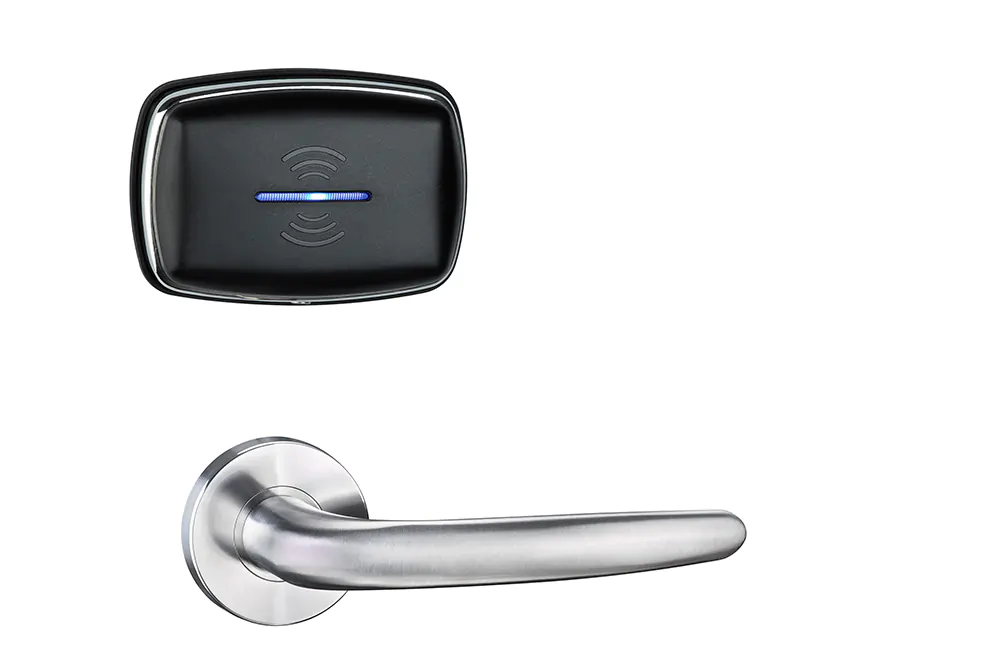

Metal Finishes Brush Stainless steel (Stainless Steel with PVD)
Satin Brass (Stainless Steel with PVD)

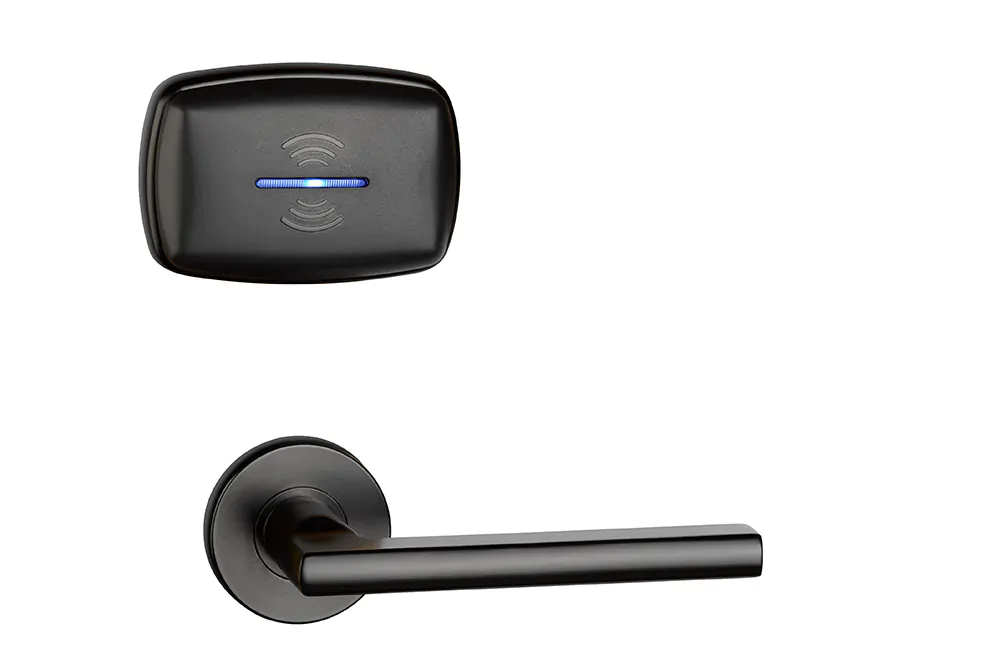

Black Nickel (Stainless Steel with PVD)
Battery Location Inside the room
Power 6V DC 4 x AA alkaline battery
Low Battery Indicator Alerts staff that batteries need to be changed soon
Emergency Opening Option Mechanical Metal Key
User Interface 2 colored LED displays (blue and red)
Locking Mechanism Electro-mechanical locking mechanism located in the lock case
Working Temperature -25℃-60℃
Working Humidity 10%-85%
Audit Trail 990 latest records include a mechanical key
Door Thickness 40-70mm
Certifications China Ministry of Public Security (MA)
European RED Directives (CE)
USA FCC Part 15C (FCC ID)
Australia C-Tick AS/NZS 4268
