GCS-1203
Add to Wishlist
Add to Wishlist
- Stand-alone electronic lock with FRID technology
- Supports Mobile Access
- High-security mortise lock case with ANSI standard.
- Solid steel handles with self-lubricating long-life bearings.
- 3-point steel latch construction with an anti-friction mechanism.
- Panic release function – the deadbolt and latch are automatically retracted by the inside handle for easy regress in emergency situations.
- Long-lasting Escutcheon and durable handle levers.
- Lock programming and audit records are not erased during battery replacement.
- Powered by four(4) AA batteries that provide up to 12-18 months of normal life.
- Up to 990 event audit trail.
- Low battery indicator alerts staff.
- High security concealed cylinder override.
- Customize key cards for different levels of access authorization.
- Opening error detected by LED light and beep sound.
- All cards have an effective period. Guest cards have limited access functions and expiration dates.
- Staff cards can be preset for operation during specified times and days.
Description

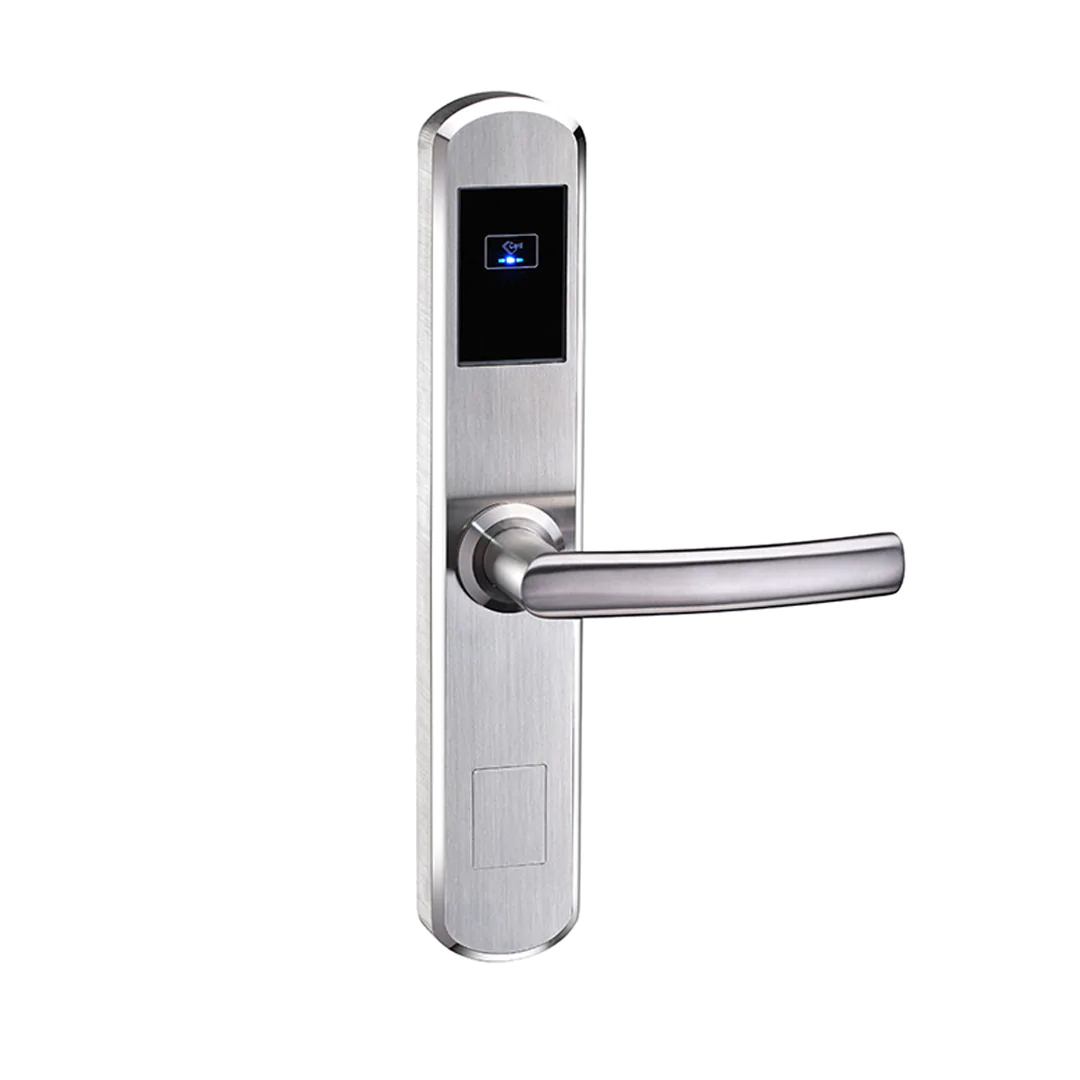

The GCS-1203 series hotel electronic locks adopt a fully-body design.
The lock is suitable for small to very large-scale hotels and suitable for both guest room doors and back-of-house applications where the door types can vary.
Material | Escutcheon and Handles (Stainless steel quality SUS304) |
---|---|
RFID and Battery Cover | Polycarbonate UL94V0 (Makrolon 6555) |

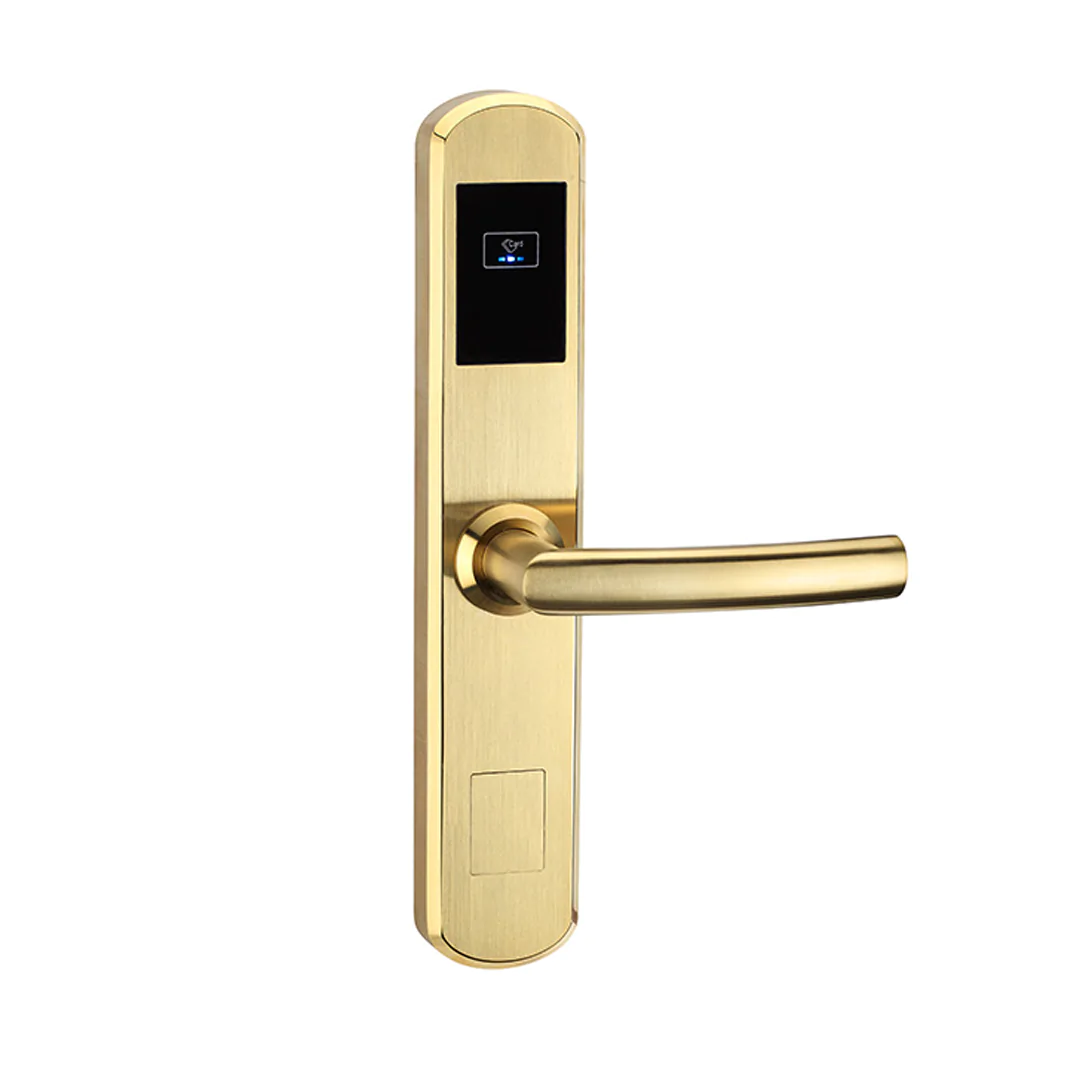

Metal Finishes | Brush Stainless steel (Stainless Steel with PVD) Satin Brass (Stainless Steel with PVD) Black Nickel (Stainless Steel with PVD) |
Battery Location | Inside the room |
Power | 6V DC 4 x AAA alkaline battery |
Low Battery Indicator | Alerts staff that batteries need to be changed soon |
Emergency Opening Option | Mechanical Metal Key |
User Interface | 2 colored LED displays (blue and red) |
Locking Mechanism | Electro-mechanical locking mechanism located in the lock case |
Working Temperature | -25℃-60℃ |
Working Humidity | 10%-85% |
Audit Trail | 990 latest records include a mechanical key |
Door Thickness | 40-70mm |
Certifications | China Ministry of Public Security (MA) European RED Directives (CE) USA FCC Part 15C (FCC ID) Australia C-Tick AS/NZS 4268 |
